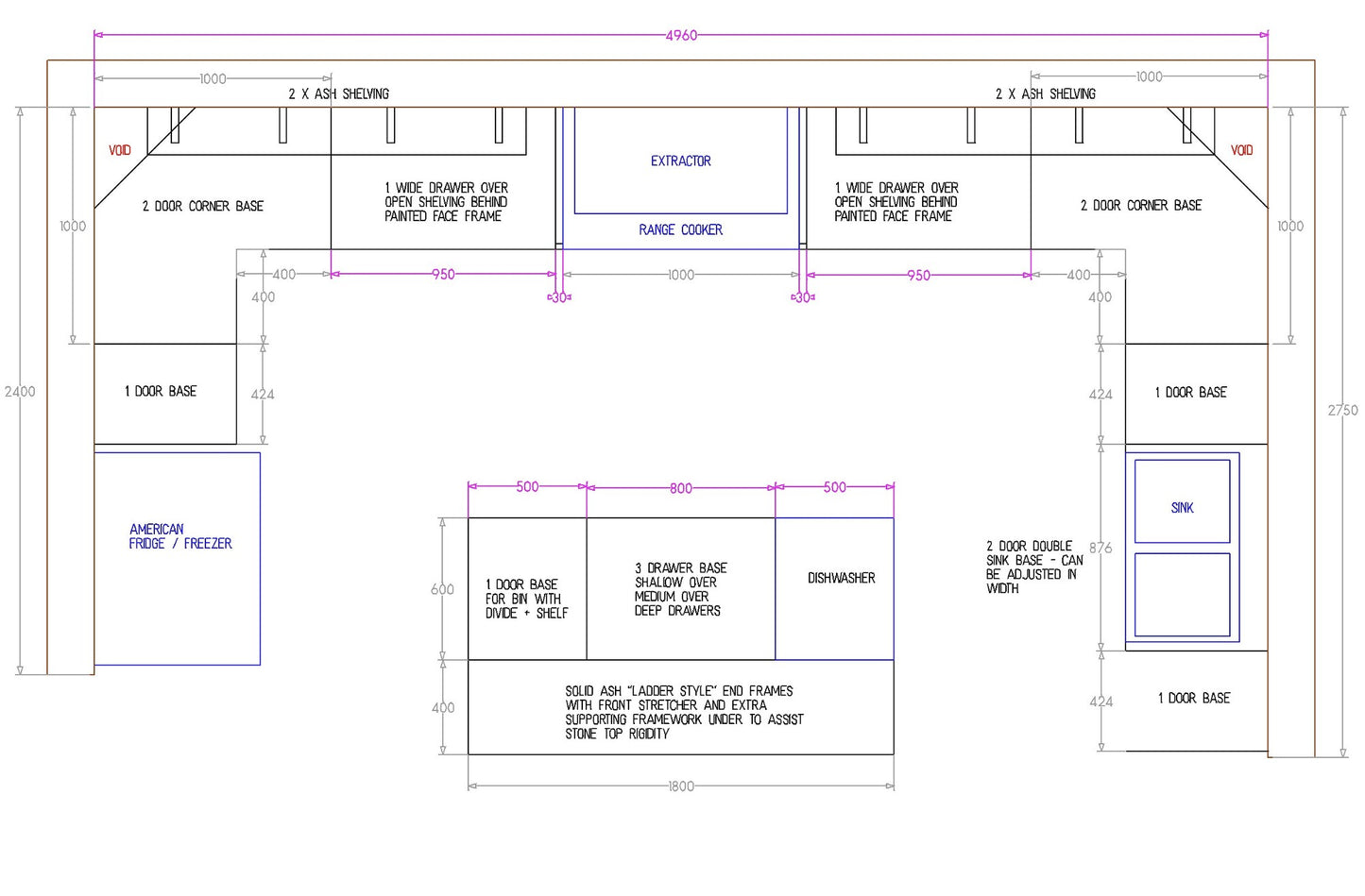

CAD Layout Drawing

Cabinet - 18mm high quality birch furniture panel

“At Fine Wood Kitchens Ltd, we use a high quality oak or birch furniture panel which are engineered boards which provides more stability for the carcass…”

Carcass Back Panel - 10mm birch veneered ply wood

Face Frame - 22mm Solid Ash with Cockbeaded Decorative Detail

Rectory Doors - 22mm joinery grade solid hardwood ash

Rectory Door Panel - 9mm ash veneered ply wood

Shelves - 18mm high grade solid birch furniture panel lipped with solid ash

Drawer Fronts - 22mm joinery grade solid hardwood ash

Drawer Boxes - 13mm joinery grade solid ash with a 10mm ash veneered base

End Panels - Kick-board/Skirting Board made from solid ash or hardwood birch panel

Cabinet - Carcass is a rebate joint with glue and mechanical fixing. The face frame is fixed on with pocket hole technology

Rectory Doors - Mortice & tenon joint with groove joint for door panel

Drawer Boxes - Dovetail joint and groove joint for base board

Carlisle Brass Soft Close Concealed Hinges

Handle of your choice

Nickel Plated Shelving Pegs with Metal Insert

Hafele Alixio Heavy Duty adjustable Hard Plastic Legs

Under-mounted Drawer Runners are Heavy Duty 45kg-105kg and Full Extension

All exterior and both sides of the door and frame are painted

A hard wearing and durable specialised kitchen Tikkurila Helmi 10 paint with a low sheen making it easily wipeable. We colour match to Little Greene and Farrow & Ball

Interior of the cabinets are finished with Amourflex Hard Wax Oil
