CGI - Computer Generated Design

CGI - Computer Generated Design

£295.00
£295.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Product Information

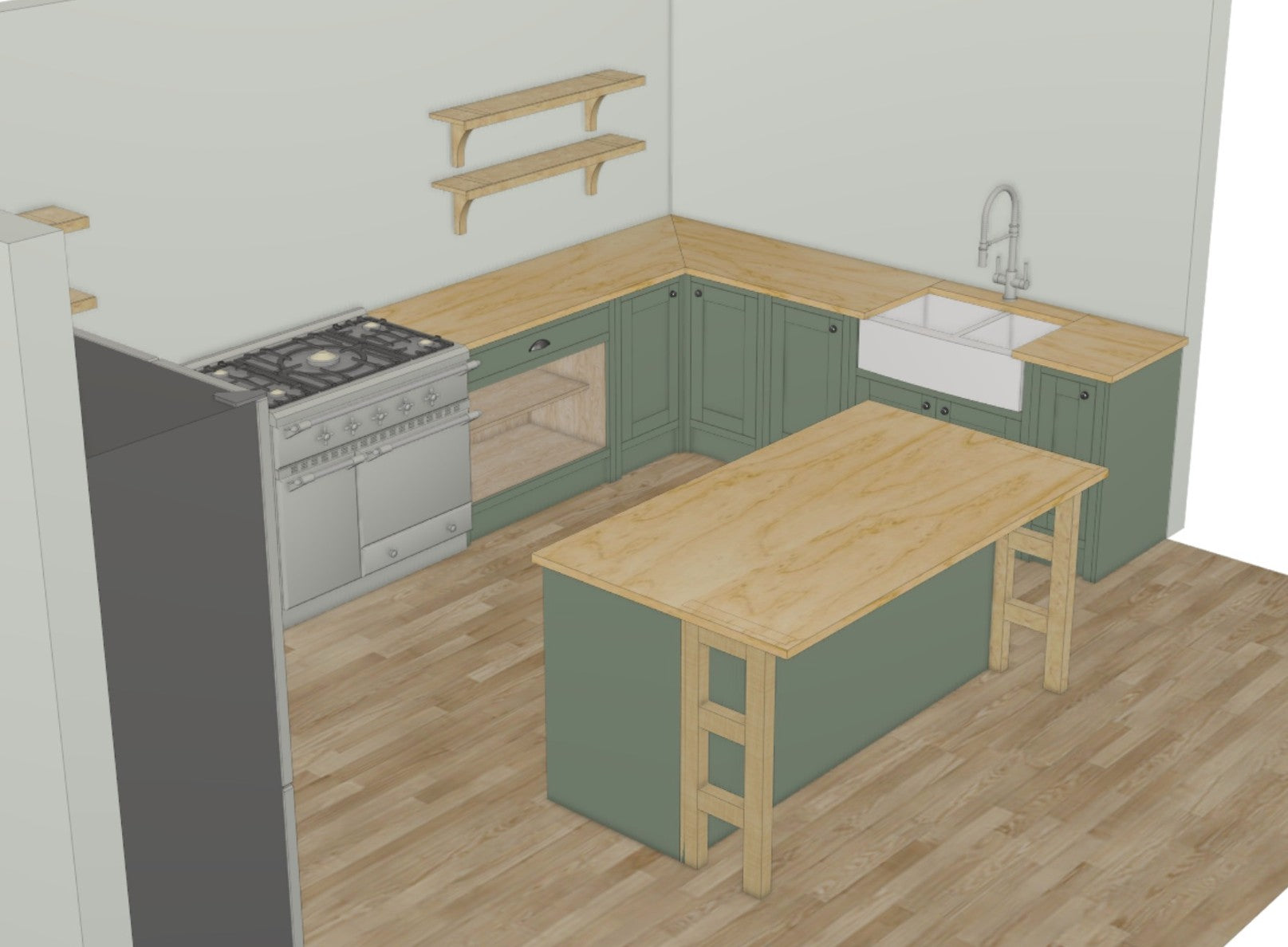

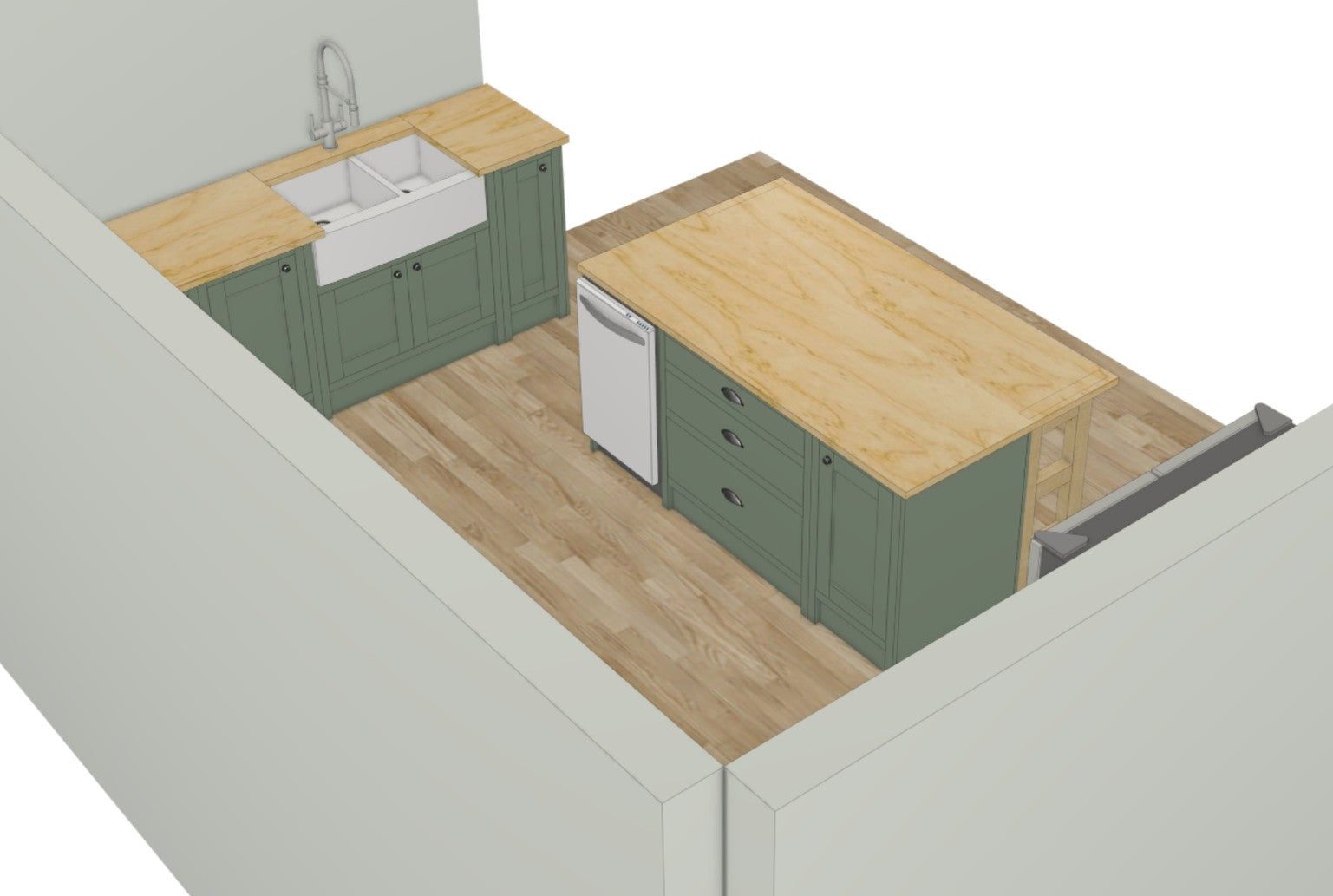

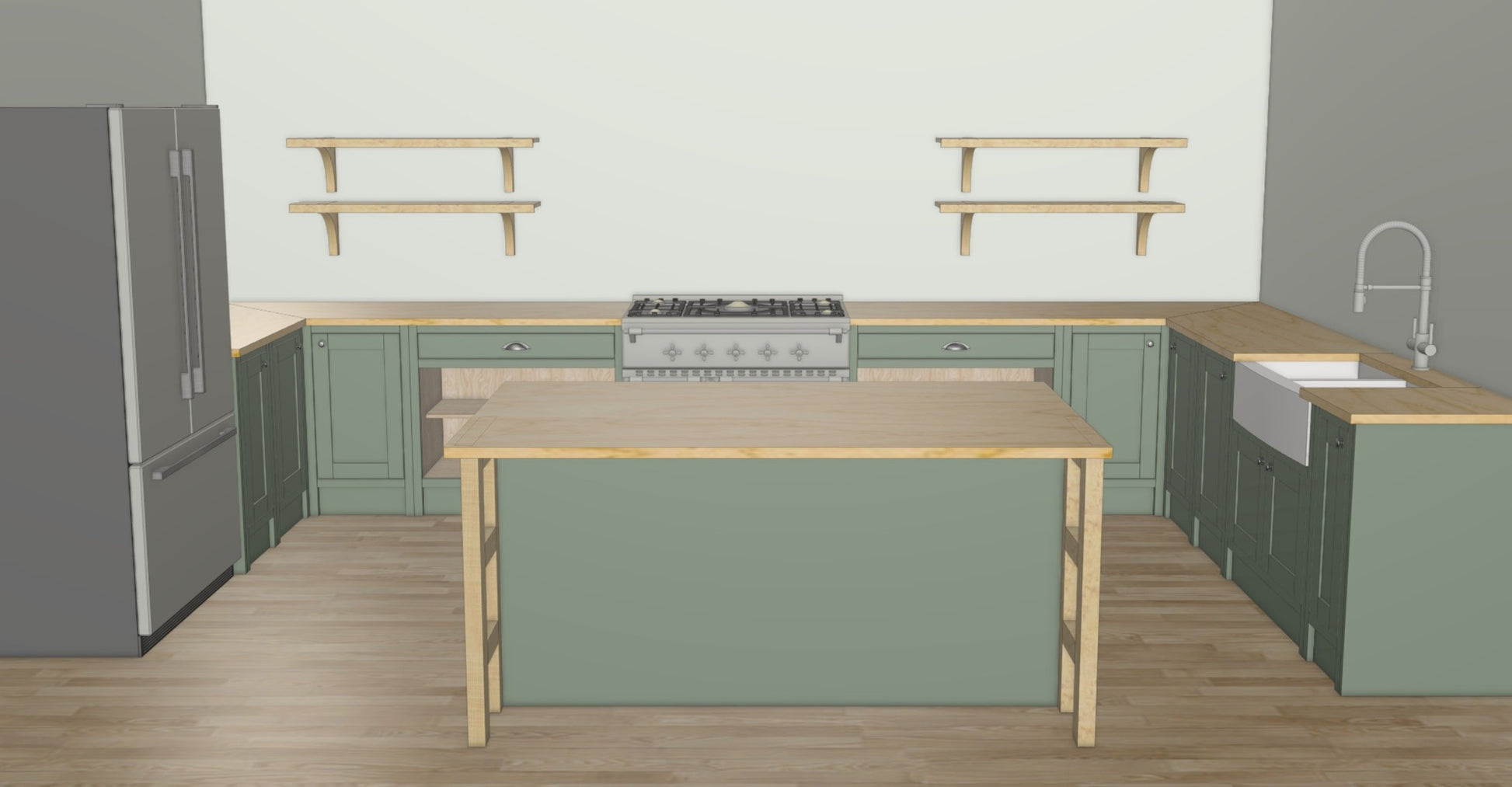

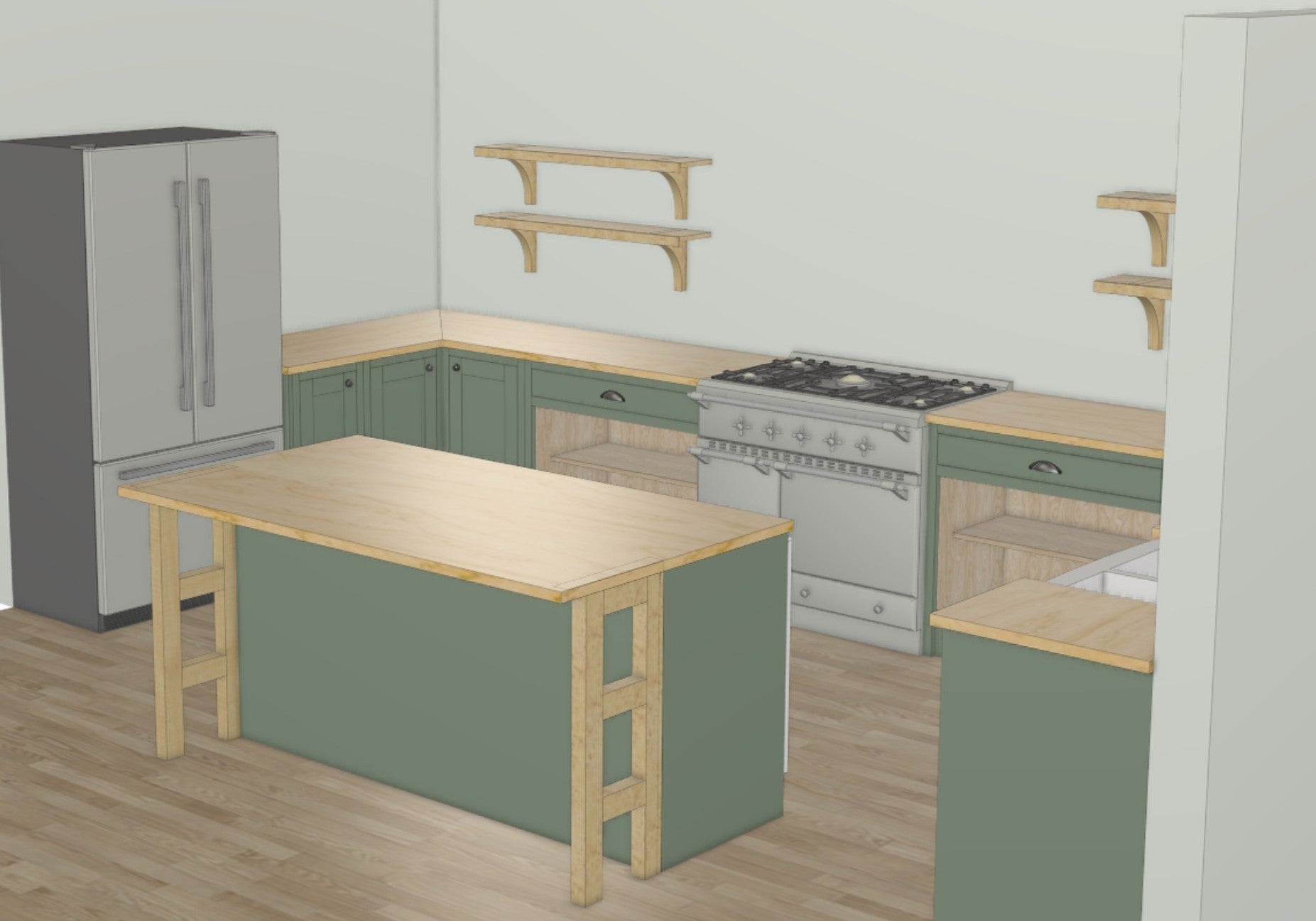

Let us create for you upto 4 Elevations of your new kitchen

Please email contact@finewoodkitchensltd.com with your information

Current lead time 5 working days

View full details

Specification

Materials

Cabinet - 18mm high quality birch furniture panel

“At Fine Wood Kitchens Ltd, we use a high quality birch furniture panel which are engineered boards which provides more stability for the carcass…”

Carcass Back Panel - 10mm birch veneered ply wood

Rectory Doors - 22mm joinery grade solid hardwood ash

Rectory Door Panel - 9mm ash veneered ply wood

Shelves - 18mm high grade birch furniture panel lipped with solid ash

Drawer Fronts - 22mm joinery grade solid hardwood ash

Drawer Boxes - 13mm joinery grade solid ash with ash panel base

Joinery Construction

Cabinet - Carcass is a rebate joint with glue and mechanical fixing. The face frame is fixed on with pocket hole technology

Rectory Doors - Mortice & tenon joint with groove joint for door panel

Drawer Boxes - Dovetail joint and groove joint for base board

Hardware

Carlisle Brass Soft Close Concealed Hinges or Butt Hinges

Handle of your choice

Nickel Plated Steel Shelving Pegs in a Metal Insert

Hafele Alixio Heavy Duty adjustable Hard Plastic Legs

Blum Soft Close Under-mounted Drawer Runners are Heavy Duty 45kg-105kg and Full Extension

Finish

All exterior and both sides of the door and frame are painted

A hard wearing and durable specialised kitchen Tikkurila Professional Paint Helmi 10 with a low sheen making it easily wipeable. We colour match to Little Greene and Farrow & Ball

Interior of the cabinets are finished with Amourflex Hard Wax Oil

Specification

Materials

Cabinet - 18mm high quality birch furniture panel

“At Fine Wood Kitchens Ltd, we use a high quality oak or birch furniture panel which are engineered boards which provides more stability for the carcass…”

Carcass Back Panel - 10mm birch veneered ply wood

Face Frame - 22mm Solid Ash with Cockbeaded Decorative Detail

Rectory Doors - 22mm joinery grade solid hardwood ash

Rectory Door Panel - 9mm ash veneered ply wood

Shelves - 18mm high grade solid birch furniture panel lipped with solid ash

Drawer Fronts - 22mm joinery grade solid hardwood ash

Drawer Boxes - 13mm joinery grade solid ash with a 10mm ash veneered base

End Panels - Kick-board/Skirting Board made from solid ash or hardwood birch panel

Joinery Construction

Cabinet - Carcass is a rebate joint with glue and mechanical fixing. The face frame is fixed on with pocket hole technology

Rectory Doors - Mortice & tenon joint with groove joint for door panel

Drawer Boxes - Dovetail joint and groove joint for base board

Hardware

Carlisle Brass Soft Close Concealed Hinges

Handle of your choice

Nickel Plated Shelving Pegs with Metal Insert

Hafele Alixio Heavy Duty adjustable Hard Plastic Legs

Under-mounted Drawer Runners are Heavy Duty 45kg-105kg and Full Extension

Finish

All exterior and both sides of the door and frame are painted

A hard wearing and durable specialised kitchen Tikkurila Helmi 10 paint with a low sheen making it easily wipeable. We colour match to Little Greene and Farrow & Ball

Interior of the cabinets are finished with Amourflex Hard Wax Oil

Specification

Materials

Cabinet - 18mm high quality oak or birch furniture panel

“At Fine Wood Kitchens Ltd, we use a high quality birch furniture panel which are engineered boards which provides more stability for the carcass…”

Carcass Back Panel - 10mm birch ply wood

Rectory Doors - 22mm joinery grade solid hardwood oak

Rectory Door Panel - oak veneered ply wood

Shelves - 18mm high grade birch furniture panel lipped with solid ash

Drawer Fronts - 22mm joinery grade solid hardwood oak

Drawer Boxes - 13mm joinery grade solid oak with a 10mm oak veneered ply base

Joinery Construction

Cabinet - Carcass is a rebate joint with glue and mechanical fixing. The face frame is fixed on with pocket hole technology

Rectory Doors - Mortice & tenon joint with groove joint for door panel

Drawer Boxes - Dovetail joint and groove joint for base board

Hardware

Soft Close Concealed Hinges

Handle of your choice

Nickel Plated Steel Shelving Pegs in a Metal Insert

Adjustable Metal Legs

Soft Close Under-mounted Drawer Runners are Heavy Duty 45kg-105kg and Full Extension

Finish

All exterior and both sides of the door and frame are painted

A hard wearing and durable specialised professional kitchen Tikkurila Paint Helmi 10 with a low sheen making it easily wipeable. We colour match to Little Greene and Farrow & Ball

Interior/exterior of the cabinets are finished with Amourflex Hard Wax Oil
